ATEX/IECEx certified Zone 2 diesel generator for oil, gas and offshore hazardous-area power supply.
Need help first? Contact chao.kuang@sunexeu.com; joann.wang@sunexeu.com

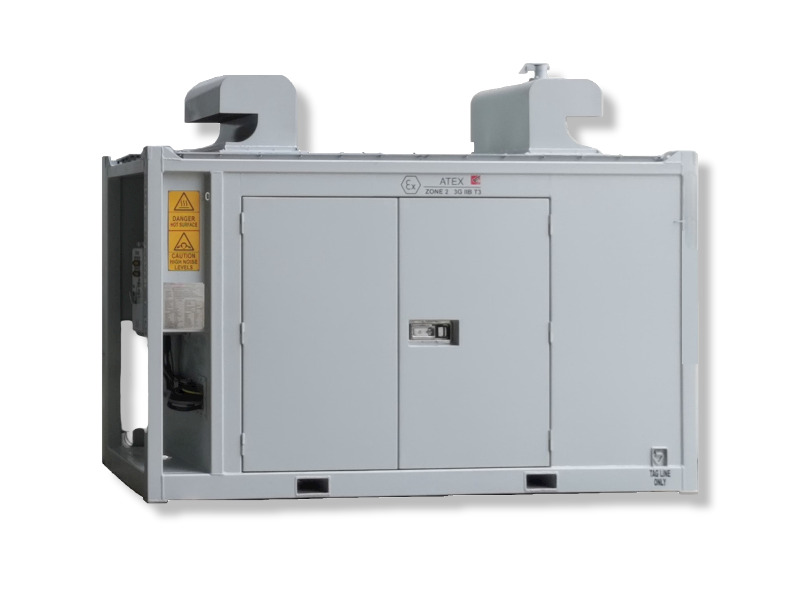

Explosion-proof Zone 2 diesel engine generator engineered for continuous operation in potentially explosive atmospheres, supporting oil & gas, offshore and petrochemical power requirements.
| Rated Power / Voltage /Frequency | 20 - 2000 kVA / 400-480V / 50Hz/60Hz |
|---|---|
| Fuel Type | Diesel |
| Hazardous Area Classification | Zone 2 |
| Gas Group | IIA / IIB |
| Temperature Class | T3 ( 200°C) |
| Compliance | 2014/34/EU ATEX;IEC 60079 Series; EN 1834-1:2000;DNV GL 2.7-1 |
A bespoke Zone 2 diesel generator solution built around a water-cooled, ATEX-certified Perkins 1104A-44T diesel engine, engineered for continuous-duty hazardous-area power supply.
| Rated Power | 30 kVA |
|---|---|
| Real Power | 24 kW |
| Power Factor | 0.8 |
| Rated Voltage | 400 VAC |
| Rated Current | 40.5 A |
| Frequency | 50 Hz |
| Phase | 3P 4W |
| Duty | Continuous |
| Weight | 5,140 kg |
| Noise @ 1m | 85 dB |
| Dimensions (L×W×H) | 3,600 × 1,500 × 2,800 mm |
| Engine | Perkins 1104A-44T, ATEX water-cooled diesel |
Certifications: ATEX Directive 2014/34/EU; IECEx Certificate of Conformity (Zone 2).
A bespoke Zone 2 diesel generator solution built around a water-cooled, ATEX-certified Perkins 1104A-44TG diesel engine, engineered for continuous-duty hazardous-area power supply.
| Rated Power | 45 kVA |
|---|---|
| Real Power | 36 kW |
| Power Factor | 0.8 |
| Rated Voltage | 400 VAC |
| Rated Current | 65 A |
| Frequency | 50 Hz |
| Phase | 3P 4W |
| Duty | Continuous |
| Weight | 3,660 kg |
| Noise @ 1m | 85 dB |
| Dimensions (L×W×H) | 3,050 × 1,532 × 2,038 mm |
| Engine | Perkins 1104A-44TG, ATEX water-cooled diesel |
Certifications: ATEX Directive 2014/34/EU; IECEx Certificate of Conformity (Zone 2).
A bespoke Zone 2 diesel generator solution built around a water-cooled, ATEX-certified Perkins 1104A-44T diesel engine, engineered for continuous-duty hazardous-area power supply.
| Rated Power | 60 kVA |
|---|---|
| Real Power | 48 kW |
| Power Factor | 0.8 |
| Rated Voltage | 400 VAC |
| Rated Current | 66.5 A |
| Frequency | 50 Hz |
| Phase | 3P 4W |
| Duty | Continuous |
| Weight | 4,500 kg |
| Noise @ 1m | 85 dB |
| Dimensions (L×W×H) | 3,600 × 1,500 × 2,800 mm |
| Engine | Perkins 1104A-44T, ATEX water-cooled diesel |
Certifications: ATEX Directive 2014/34/EU; IECEx Certificate of Conformity (Zone 2).
Note: reference photography drawn from a source folder labelled "20kva(60kva)" — please confirm this matches the current 60 kVA build.
